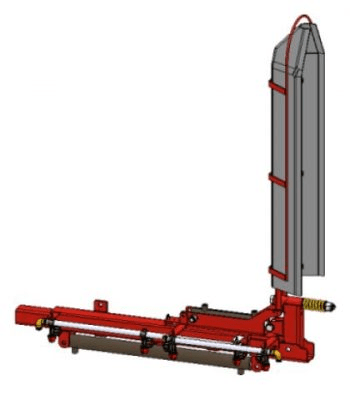

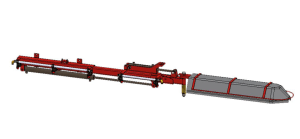

Rear Hydraulic Herbacide Bars
Available width: 126 cm.
General Characteristics
- Cold-rolled structural tube chassis
- Fire-painted structure
- Double-acting pistons
- Screens made of reinforced polyethylene with a spring system and special folding for transport
- Multi-position of the horizontal arms by means of pistons or manually
- Protectors to prevent screen breakage
- Stainless steel feed tubes with ½” thread and Ø 7 mm holes spaced 370 mm apart
- Bar supplied with: nozzles and nozzle holders, hydraulic and oleo dynamic connection hoses

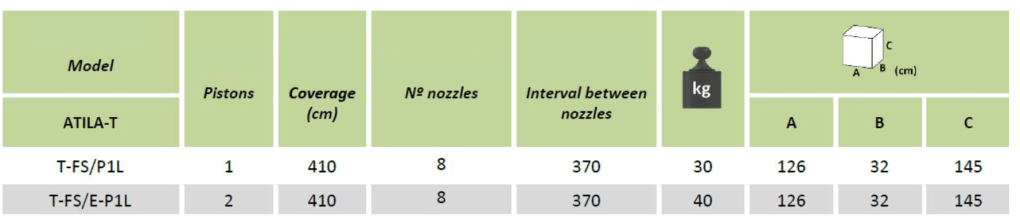

Technical Specifications

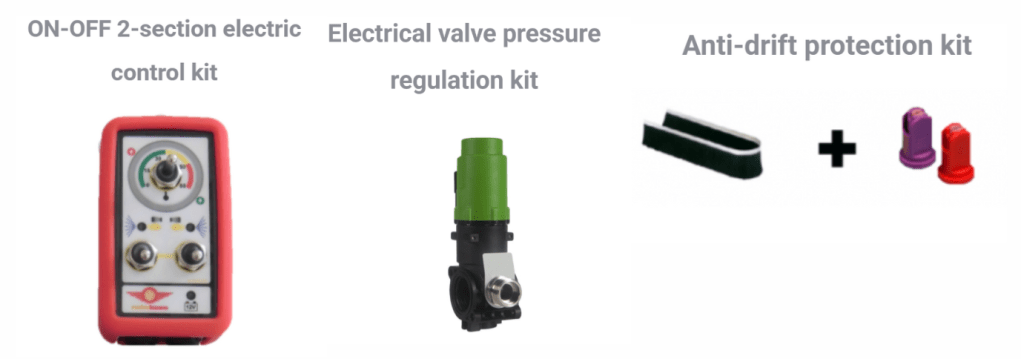

OPTIONAL EQUIPMENT
