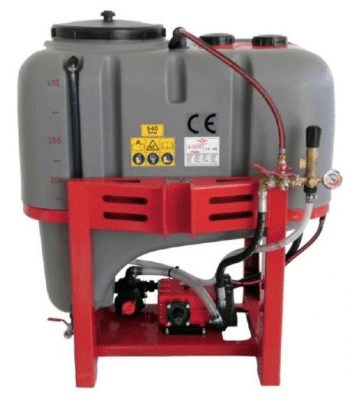

3 Point Linkage sprayer
Available width: from 116 to 174 cm.
Tank capacity: 300, 400, 600, 800, 1000, 1200 and 1500 liters
General Characteristics
- Cold-rolled structural tube chassis
- Main polyethylene tank with level indicator
- Polyethylene handwash tank and circuit breaker tank
- Multiple filtration system
- Hydraulic agitator
- High or low pressure piston or diaphragm pump
- Manual control with pressure regulator and pressure gauge located on the equipment chassis
- Transmission category 3 SAE G4
Technical Specifications
Movements
Mañez&Lozano reduction pump, specifically designed for sprayers. Low-maintenance and highly durable, this pump incorporates a reduction shaft and a through shaft: the through shaft transmits the tractor’s PTO revolutions directly to the air unit, and the reduction gear reduces the pump’s crankshaft rpm, reducing power absorption, fuel consumption, and pump wear.
M-170 MANUAL CONTROL
Manual control with a selector lever, which allows you to select the sections you wish to treat. Turning the knob also allows you to regulate the working pressure precisely and reliably, even at low operating speeds.
ELECTRIC ON-OFF CONTROL
Mañez&Lozano electric control with pressure regulator (optional) for opening and closing the right and left solenoid valves
TRONIC CONTROL
- The volumetric Tronic control is capable of applying the l/Ha required for each treatment depending on the forward speed.
- 3.2” TFT colour screen (320×240), which allows all functions to be viewed at the same time.
Identification of electrical faults through on-screen alarms. - Agenda that allows us to work with 50 different fields and 15 different treatments.

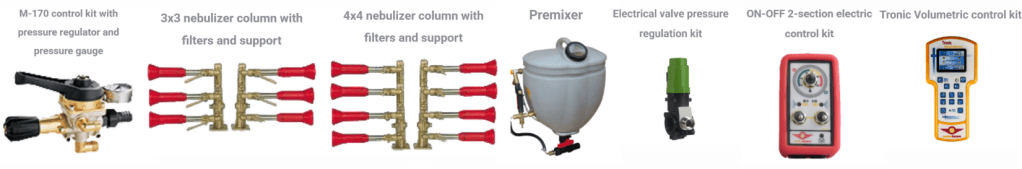

OPTIONAL EQUIPMENT
