General Characteristics
- Cold-rolled structural tube chassis
- Main polyethylene tank with level indicator
- Polyethylene handwash tank and circuit breaker tank
- Multiple filtration system
- Hydraulic agitator
- High-pressure piston pump
- Manual control with pressure regulator and pressure gauge located on the equipment chassis
- Transmission between pump and turbine by cardan joint
- Outdoor transmission category 3 SAE G4
Air Group
Twister diffusers produce a turbulent, spiral-shaped airflow that moves the leaf mass, avoiding the shielding effect and effectively penetrating the interior of the tree.
- Mañez Lozano fan of ø820 mm or ø920 mm with nozzle and counter-propeller in stainless steel with 18 blades, which guarantee a homogeneous distribution of the air volume
- Mañez Lozano multiplier with two speeds and neutral capable of transmitting great power
- Triple air channeling system prevents fast air from the peripheral part from colliding with the slow air generated in the central part, increasing the fan’s efficiency.
- Eight adjustable aerodynamically designed blades that increase performance, reduce fuel consumption and noise levels.
- Duralumin propeller hub with steel sleeve to prevent wear due to friction with the clutch
- Centrifugal clutch with aluminum Ferodo that allows a smooth and progressive start
Other Equipment
DIRECT PUMP ML-D
Pump specifically designed inhouse for air blast sprayers
MANUAL CONTROL
- Manual control with a selector lever, which allows you to select the sections you wish to treat. Turning the knob also allows you to regulate the working pressure precisely and reliably, even at low operating speeds.
ELECTRIC ON-OFF CONTROL
Mañez y Lozano electric control with pressure regulator (optional) for opening and closing the right and left solenoid valves
TRONIC CONTROL
TRONIC CONTROL
- The Tronic control is capable of applying the l/Ha required for each treatment depending on the forward speed.
- 3.2” TFT colour screen (320×240), which allows all functions to be viewed at the same time.
- Identification of electrical faults through on-screen alarms.
- Agenda that allows us to work with 50 different fields and 15 different treatments
SISTROMATIC CONTROL
SISTROMATIC CONTROL
- The Sistromatic control incorporates ultrasonic sensors for tree detection .
- Real-time plant and tree counters.
- Entry and exit delay control.
- 3.2” TFT colour screen (320×240) with backlit keyboard
- Electrical fault identification via on-screen alarms

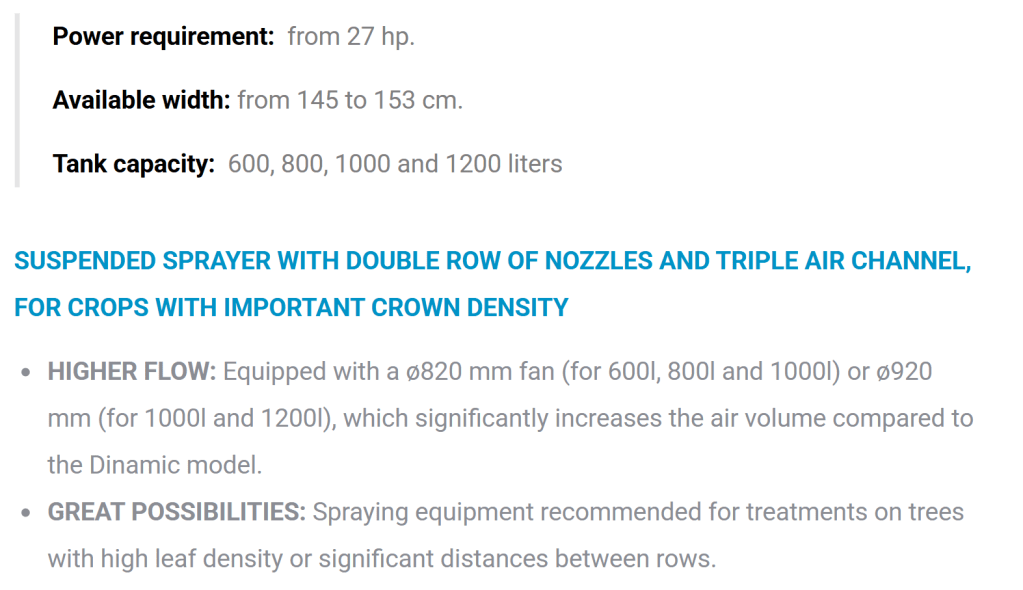

Technical Specifications

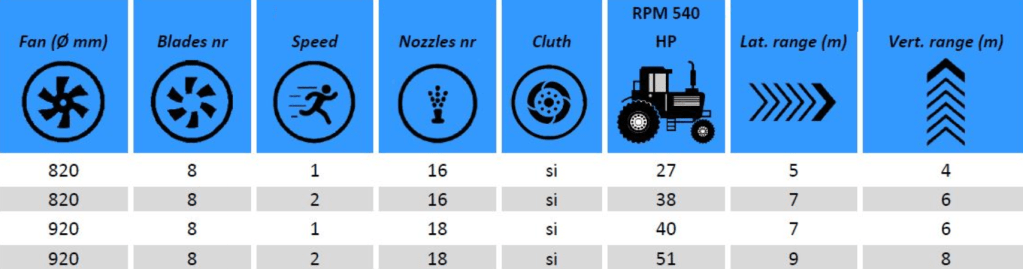

Characteristics of the Air Group
OPTIONAL EQUIPMENT
