General Characteristics

Air Group

Twister diffusers produce a turbulent, spiral-shaped airflow that moves the leaf mass, avoiding the shielding effect and effectively penetrating the interior of the tree.

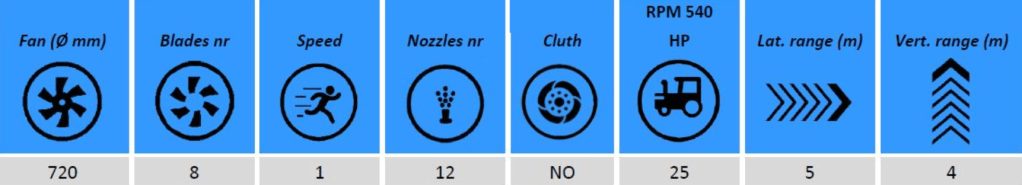

• Mañez Lozano fan, Ø-720 mm, with nozzle and counter-propeller in varnished iron

• Multiplier with a speed and neutral point capable of transmitting great power

• Triple air channeling system prevents fast air from the peripheral part from colliding with the slow air generated in the central part, increasing the fan’s efficiency.

• Eight adjustable aerodynamically designed blades that increase performance, reduce fuel consumption and noise levels.

• Propeller core in polypropylene

Other Equipment

DIRECT PUMP ML-D

Pump specifically designed inhouse for air blast sprayers

ML-65 DIRECT LIGHT PUMP

Direct Light Series Piston Pump Model ML-65

ELECTRIC ON-OFF CONTROL

Mañez y Lozano electric control with pressure regulator (optional) for opening and closing the right and left solenoid valves

TRONIC CONTROL

TRONIC CONTROL

• The Tronic control is capable of applying the l/Ha required for each treatment depending on the forward speed.

• 3.2” TFT colour screen (320×240), which allows all functions to be viewed at the same time.

• Identification of electrical faults through on-screen alarms.

• Agenda that allows us to work with 50 different fields and 15 different treatments

SISTROMATIC CONTROL

SISTROMATIC CONTROL

• The Sistromatic control incorporates ultrasonic sensors for tree detection .

• Real-time plant and tree counters.

• Entry and exit delay control.

• 3.2” TFT colour screen (320×240) with backlit keyboard

• Electrical fault identification via on-screen alarms
