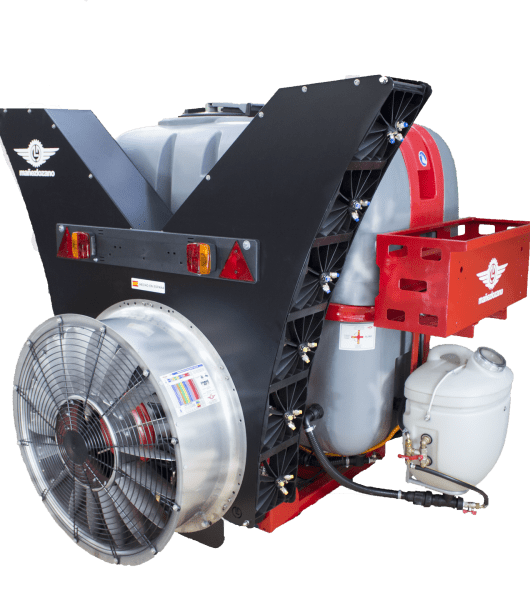

General Characteristics
- Cold-rolled structural tube chassis
- Main polyethylene tank with level indicator
- Polyethylene handwash tank and circuit breaker tank
- Multiple filtration system
- Hydraulic agitator
- High-pressure piston pump
- Manual control with pressure regulator and pressure gauge located on the equipment chassis
- Transmission between pump and turbine by cardan joint
- Outdoor transmission category 3 SAE G4

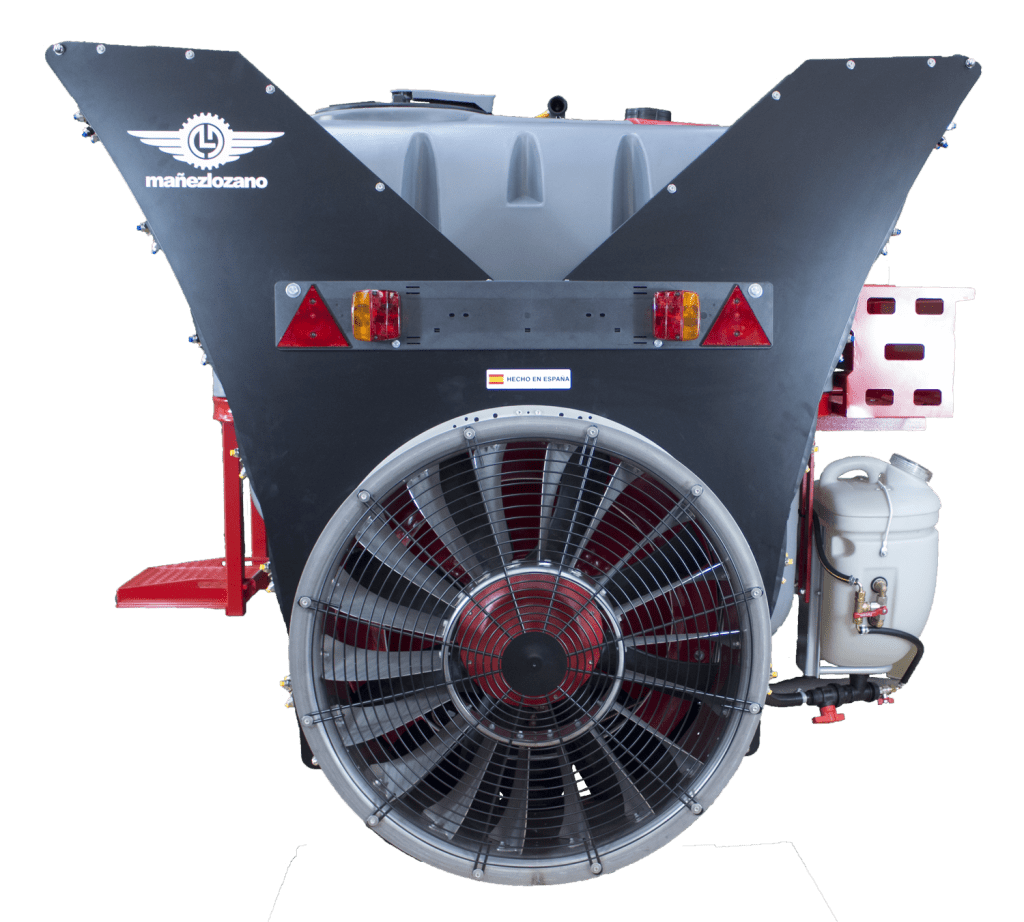

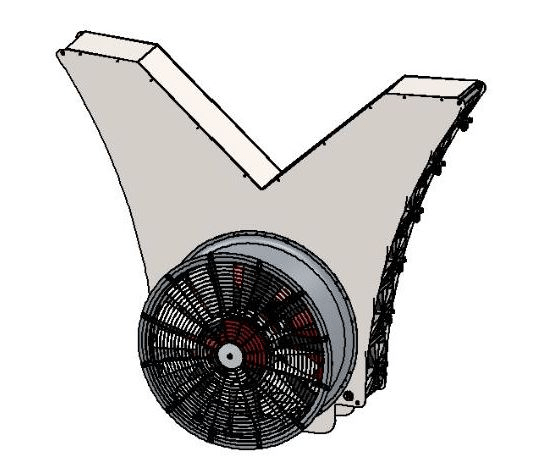

Air Group
Twister diffusers produce a turbulent, spiral-shaped airflow that moves the leaf mass, avoiding the shielding effect and effectively penetrating the interior of the tree.
- Mañez y Lozano Ø820 mm fan with stainless steel nozzle and counter-propeller with 18 blades, which guarantee a homogeneous distribution of the air volume.
- Twister diffusers with 36 anti-droplet nozzle holders with turbulence nozzles
- Mañez y Lozano multiplier with two speeds and neutral capable of transmitting great power
- Triple air channeling system prevents fast air from the peripheral part from colliding with the slow air generated in the central part, increasing the fan’s efficiency.
- Eight adjustable aerodynamically designed blades that increase performance, reduce fuel consumption and noise levels.
- Duralumin propeller hub with steel sleeve to prevent wear due to friction with the clutch
- Centrifugal clutch with aluminum Ferodo that allows a smooth and progressive start
Other Equipment
DIRECT PUMP ML-D
Pump specifically designed inhouse for air blast sprayers
ELECTRIC ON-OFF CONTROL
Mañez y Lozano electric control with pressure regulator (optional) for opening and closing the right and left solenoid valves

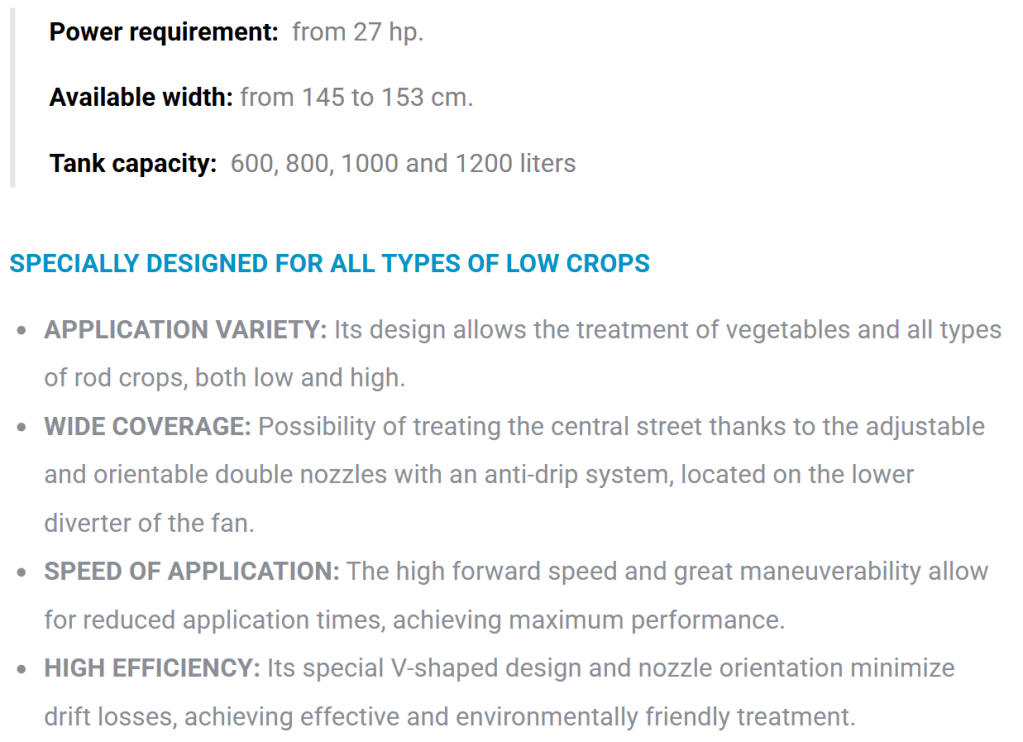

Technical Specifications

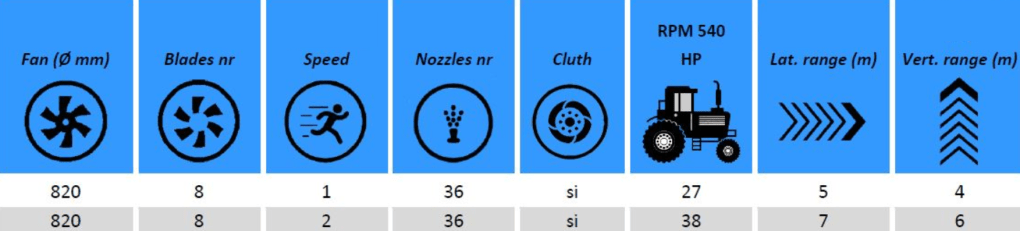

Characteristics of the Air Group
OPTIONAL EQUIPMENT
