General Characteristics

Air Group

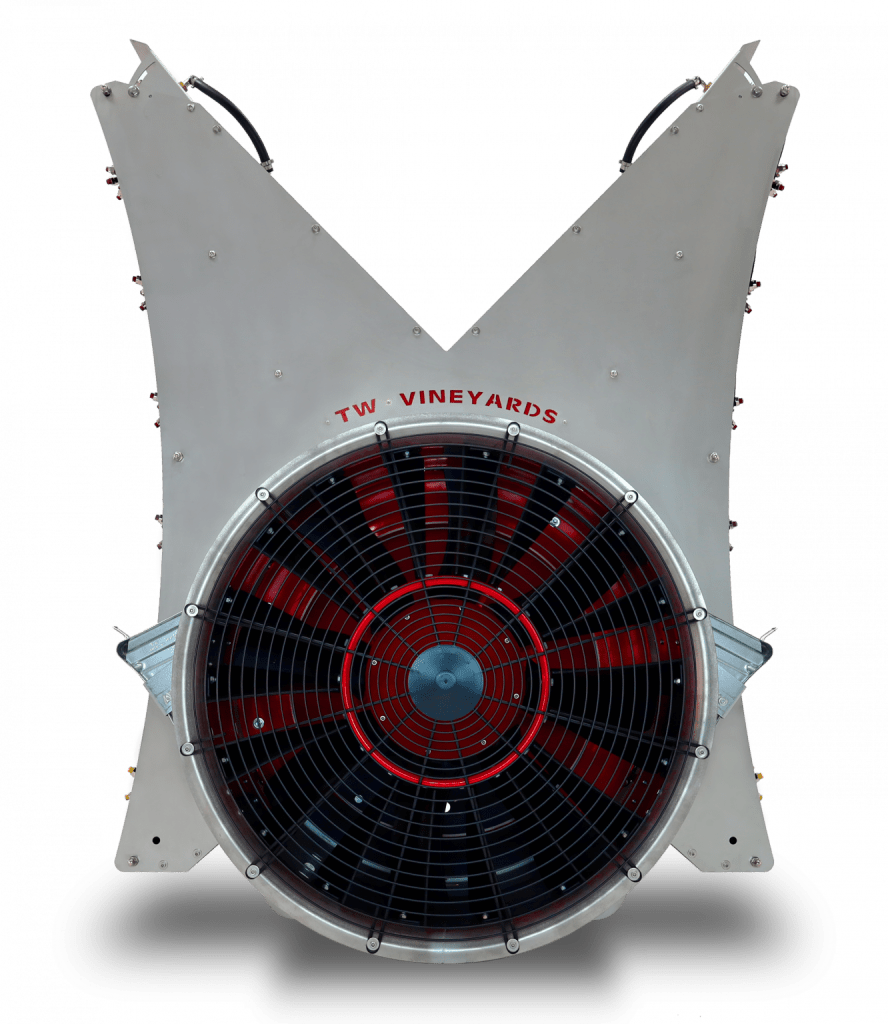

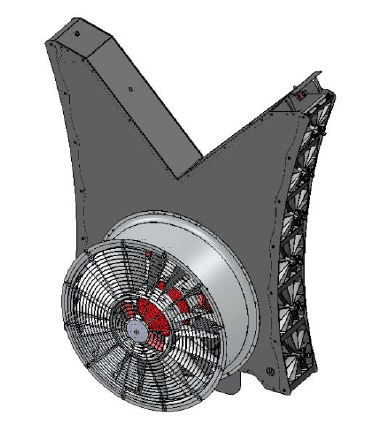

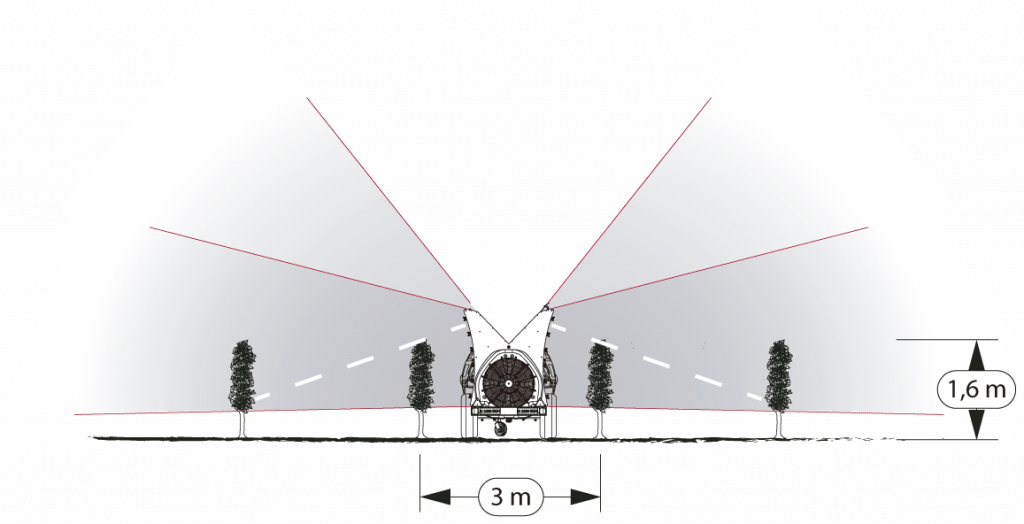

Twister diffusers produce a turbulent, spiral-shaped airflow that moves the leaf mass, avoiding the shielding effect and effectively penetrating the interior of the tree.

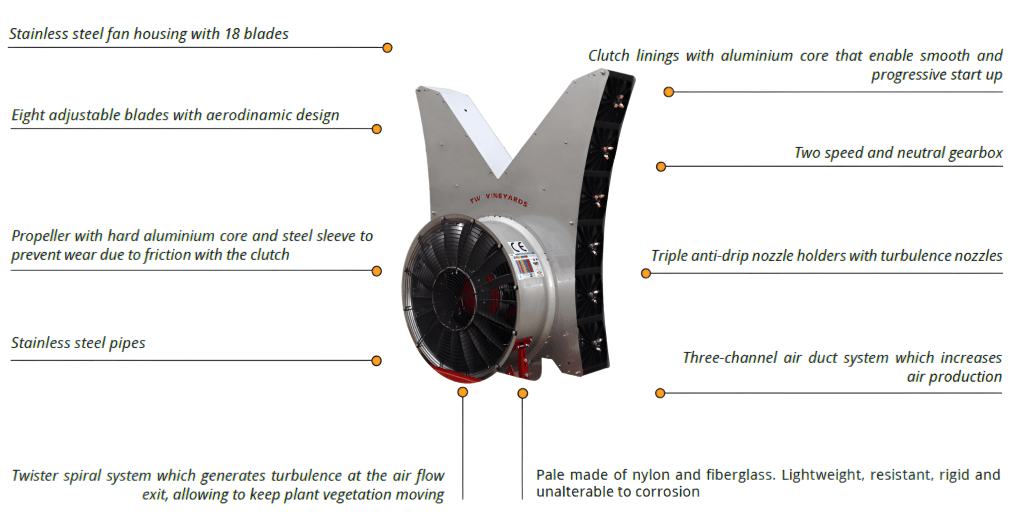

• Mañez y Lozano Ø820 mm fan with stainless steel nozzles and counter-propeller with 18 blades, which guarantee a homogeneous distribution of the air volume.

• Twister diffusers with 36 anti-droplet nozzle holders with turbulence nozzles

• Mañez y Lozano multiplier with two speeds and neutral capable of transmitting great power

• Triple air channeling system prevents fast air from the peripheral part from colliding with the slow air generated in the central part, increasing the fan’s efficiency.

• Eight adjustable aerodynamically designed blades that increase performance, reduce fuel consumption and noise levels.

• Duralumin propeller hub with steel sleeve to prevent wear due to friction with the clutch

• Centrifugal clutch with aluminum Ferodo that allows a smooth and progressive start

Other Equipment

DIRECT PUMP ML-D

• Pump specifically designed inhouse for air blast sprayers

ELECTRIC ON-OFF CONTROL

• Mañez y Lozano electric control with pressure regulator (optional) for opening and closing the right and left solenoid valves

TRONIC CONTROL

• The Tronic control is capable of applying the l/Ha required for each treatment depending on the forward speed.
• 3.2” TFT colour screen (320×240), which allows all functions to be viewed at the same time.
• Identification of electrical faults through on-screen alarms.
• Agenda that allows us to work with 50 different fields and 15 different treatments
