General Characteristics
- Cold-rolled structural tube chassis
- Step for easy access to the tank filler neck
- Step for easy access to the tank filler neck
- Polyester handwash tank and circuit breaker tank
- Multiple filtration system
- Hydraulic agitator
- High-pressure piston pump
- M-170 manual control
- Transmission between pump and turbine by cardan joint
- External transmission category 4 SAE G7
Air Group
- Centrifugal cannon Ø-500 with double hot-dip galvanized nozzle
- Two-speed multiplier with neutral
- Aluminum brake lining clutch
- Stainless steel feed pipes
- Double anti-drip nozzle holders with ceramic and turbulence nozzles
Other Equipment
DIRECT PUMP ML-D
Pump specifically designed inhouse for air blast sprayers
ELECTRIC ON-OFF CONTROL
Mañez y Lozano electric control with pressure regulator (optional) for opening and closing the right and left solenoid valves
M-170 MANUAL CONTROL
- Manual control with a selector lever, which allows you to select the sections you wish to treat. Turning the knob also allows you to regulate the working pressure precisely and reliably, even at low operating speeds.

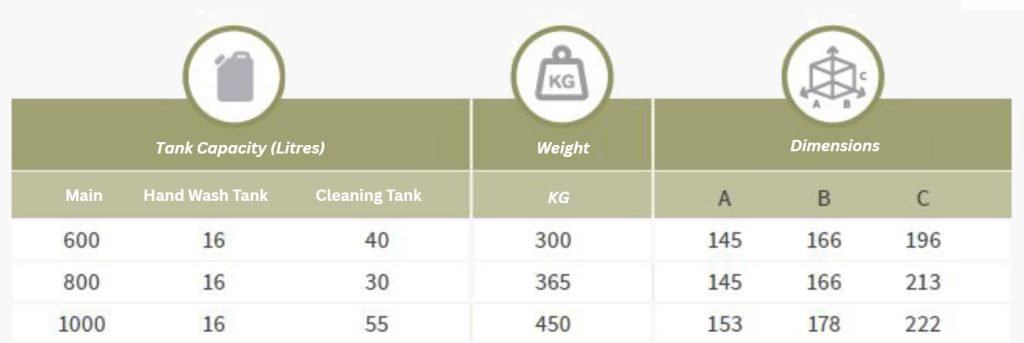

Technical Specifications
Characteristics of the Air Group

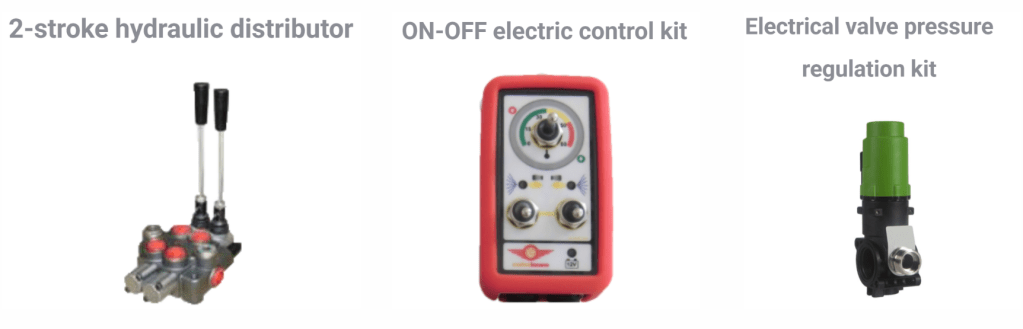

OPTIONAL EQUIPMENT
