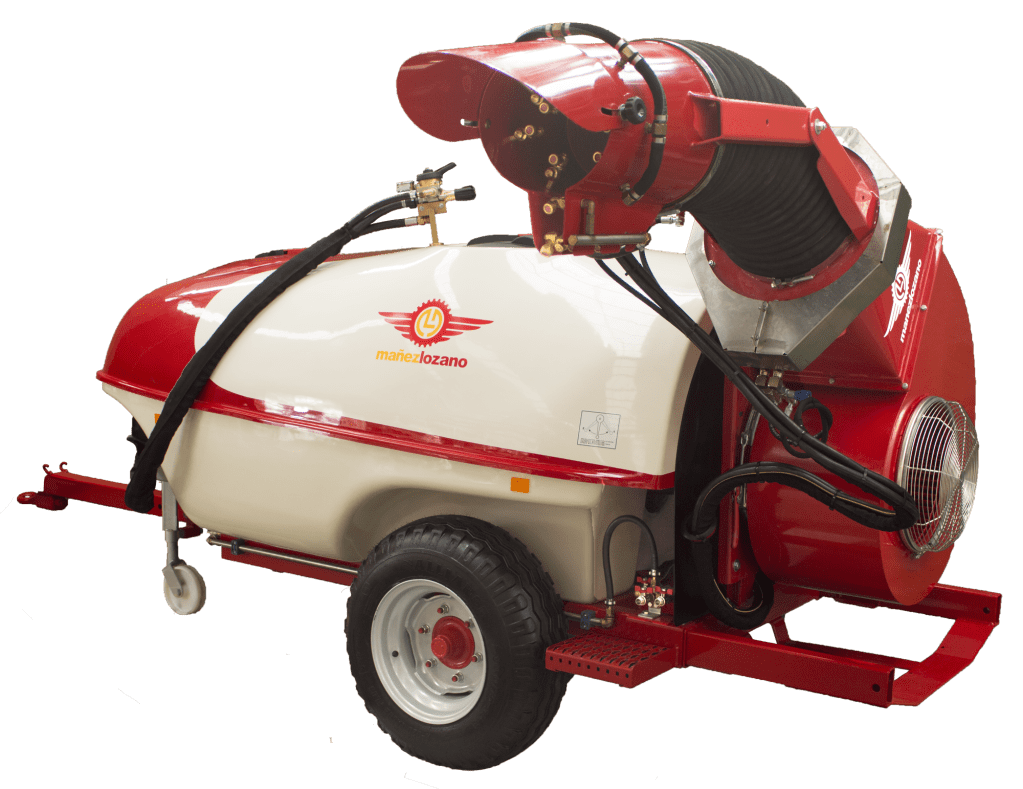

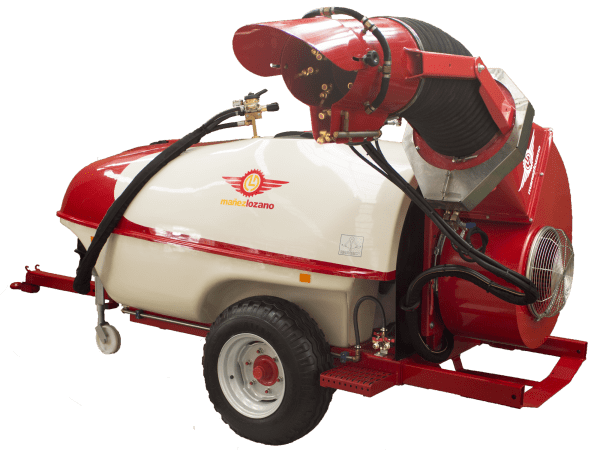

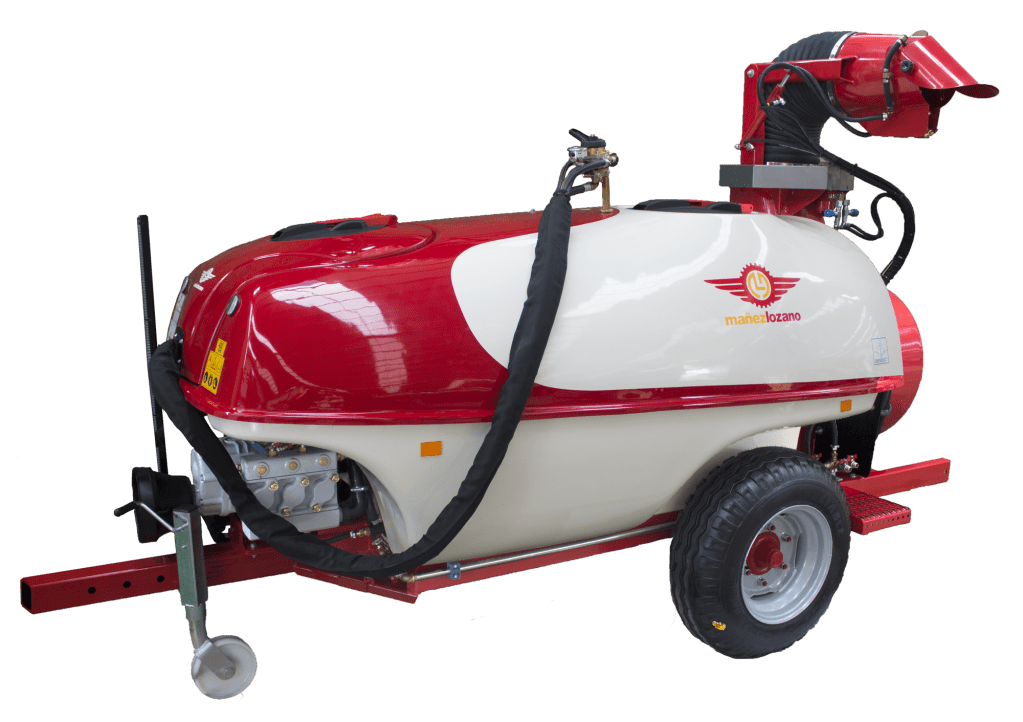

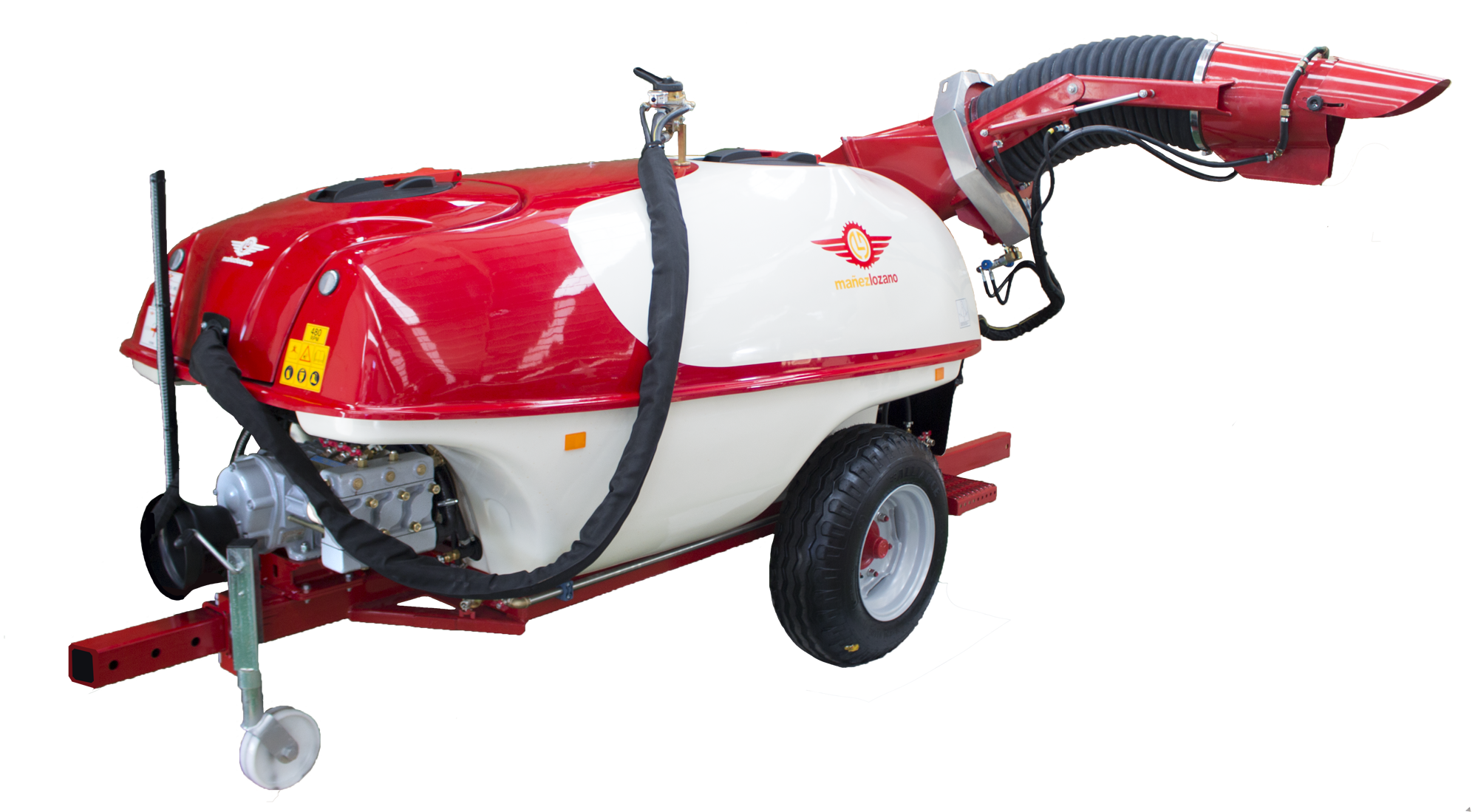

General Characteristics
- Cold-rolled structural tube chassis
- Telescopic shooting lance
- Step for easy access to the tank filler neck
- Jockey wheel stand
- Main tank made of high-quality, uniform-thickness polyester with front and side level indicator (with breakwater partition on 3000 l and 4000 l tanks)
- Handwash tank and circuit-wash tank
- Multiple filtration system
- Product mixer
- Internal cleaning robot for the main tank
- Hydraulic agitator
- High-pressure piston pump with reduction shaft
- Electric ON-OFF control
- Internal transmission category 4 SAE G7
- External and tractor transmission homokinetic category 4 SAE G7
Air Group
- Centrifugal cannon Ø-500 with double hot-dip galvanized nozzle
- Two-speed multiplier with neutral
- Aluminum brake lining clutch
- Stainless steel feed pipes
- Double anti-drip nozzle holders with ceramic and turbulence nozzles
Other Equipment
DIRECT PUMP ML-D
Pump specifically designed inhouse for air blast sprayers
SUPER REDUCTION PUMP ML-A1
A pump specifically designed for air blast sprayers. This pump is mounted with a reduction shaft and a through shaft: the through shaft allows us to directly transmit the revolutions from the tractor’s PTO to the air unit, and the reduction gear reduces the pump’s crankshaft revolutions, reducing power absorption and therefore fuel consumption and pump wear.
SUPER DIRECT PUMP ML-A
Pump specially designed for air blast sprayers.
ELECTRIC ON-OFF CONTROL
Mañez y Lozano electric control with pressure regulator (optional) for opening and closing the right and left solenoid valves
M-170 MANUAL CONTROL
- Manual control with a selector lever, which allows you to select the sections you wish to treat. Turning the knob also allows you to regulate the working pressure precisely and reliably, even at low operating speeds.
Technical Specifications
Characteristics of the Air Group
OPTIONAL EQUIPMENT
